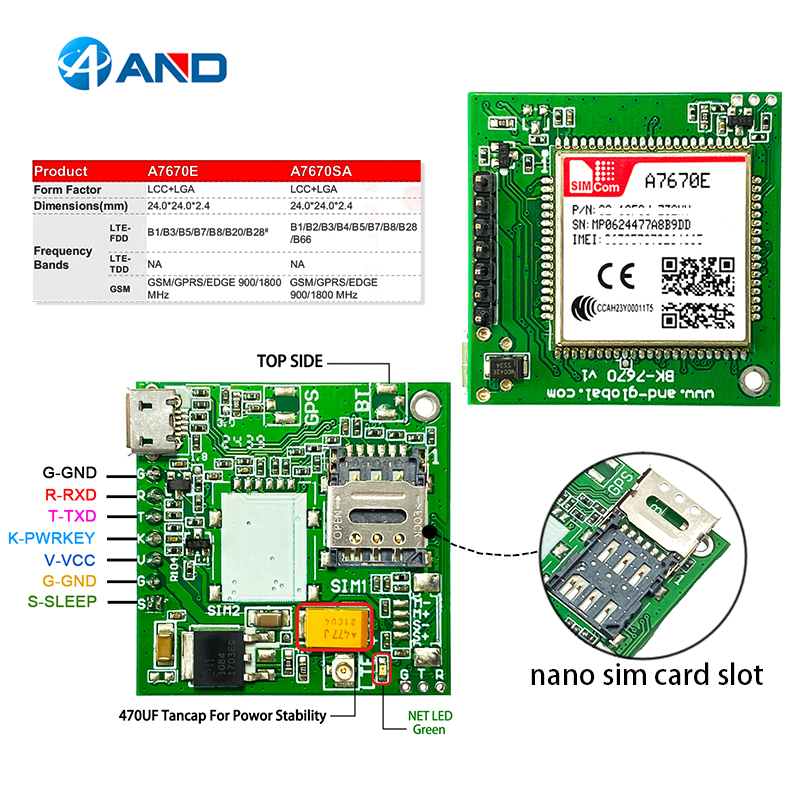

Simcom A7670e 4g Cat 1 With Gsm Gps Module With Development Core Board Wireless Communication Ttl With 4g Gps Antennas

oops...!

no product data.

Go to homepage

Simcom A7670e 4g Cat 1 With Gsm Gps Module With Development Core Board Wireless Communication Ttl With 4g Gps Antennas 6

Simcom A7670e 4g Cat 1 With Gsm Gps Module With Development Core Board Wireless Communication Ttl With 4g Gps Antennas 7



Simcom A7670e 4g Cat 1 With Gsm Gps Module With Development Core Board Wireless Communication Ttl With 4g Gps Antennas 8

A7670X

The A7670 series is the LTE Cat 1 module which supportswireless communication modes of LTE-TDD/LTE-FDD/GSM/GPRS/EDGE. It supports maximum 10Mbps downlinkrate and 5Mbps uplink rate.The A7670 series adopts LGA form factor and iscompatible with SIM7000/SIM7070 series(NB/Cat Mmodules), and SIM800A/SIM800F(2G modules), whichenables smooth migration from 2G/NB/Cat M products toLTE Cat 1 products, and greatly facilitates morecompatible product design for the customer needs.

The A7670 series supports multiple built-in networkprotocols, supports drivers for main operation systems(USB driver for Windows, Linux and Android etc.) andsoftware function, AT commands are compatible withSIM7500/SIM7600 series modules. Meanwhile the A7670series integrates main industrial standard interfaces, withpowerful expansibility, including abundant interfaces suchas UART, USB, I2C, GPIO, which is suitable for main IOTapplications such as telematics, surveillance devices, POS,industrial routers, and remote diagnostics etc.

Simcom A7670e 4g Cat 1 With Gsm Gps Module With Development Core Board Wireless Communication Ttl With 4g Gps Antennas 9

Simcom A7670e 4g Cat 1 With Gsm Gps Module With Development Core Board Wireless Communication Ttl With 4g Gps Antennas 10Simcom A7670e 4g Cat 1 With Gsm Gps Module With Development Core Board Wireless Communication Ttl With 4g Gps Antennas 11Simcom A7670e 4g Cat 1 With Gsm Gps Module With Development Core Board Wireless Communication Ttl With 4g Gps Antennas 12Simcom A7670e 4g Cat 1 With Gsm Gps Module With Development Core Board Wireless Communication Ttl With 4g Gps Antennas 13Simcom A7670e 4g Cat 1 With Gsm Gps Module With Development Core Board Wireless Communication Ttl With 4g Gps Antennas 14

官网-A7670系列.jpgSimcom A7670e 4g Cat 1 With Gsm Gps Module With Development Core Board Wireless Communication Ttl With 4g Gps Antennas 15Simcom A7670e 4g Cat 1 With Gsm Gps Module With Development Core Board Wireless Communication Ttl With 4g Gps Antennas 16
